Digital Earthmovers Combo with DGL1010GM Laser & MR825WD Receiver

A superb professional earthmovers combo of Laser and Machine Receiver.  Consists of the RedBack Lasers DGL1010GM digital grade laser with grade tracking together with the MR825WD machine receiver with a wireless in-cab unit.  This combo package is specifically put together for those using machines for drainage and other earthmoving and civil construction applications.  Call 1800 769 858 if you have any questions when choosing which Earthmovers combo package is the right one for you.  This is a great package for Laser Planes, Box Blades, Grader Blades, Dozers, Backhoes and more.



The DGL1010GM is an electronic digital grade / slope with tracking grade match rotating laser.

Digital Grade with Tracking Video Guides followed by Descriptions and Specifications









Description

The RedBack Lasers DGL1010GM Digital Grade / Slope Laser with Tracking laser is fully electronic self-levelling and features dual digital grade setting either from its control panel or Smart Remote.  It is the ultimate in Grade setting on site.

Digital Grade with Tracking

DGL1010GM can set up to a 10% grade one axis at a time or on both axis simultaneously and grades can be set to 3 decimal places.  The sophisticated mechanism will even re-level and re-set grade automatically if disturbed or you can select TILT to warn of any major knocks or vibrations, so, providing peace of mind your grades are accurate.

The DGL1010GM can, in addition, auto grade match on either axis by locking onto the special two-way RF communicating tracking millimetre receiver.  The laser level on the selected axis slopes up and down to find the receiver and then locks onto its position, once locked the laser even displays the percentage grade it has matched to. This tracking feature can also be used with the laser on its side for vertical alignment. Making it an awesome fencing laser, see the video on fence alignment above.

Vibration Settings

The DGL1010GM also features V-W-S vibration and Wind Settings, during high winds or on-site with heavy machinery the laser may stop to re-level frequently.  To save time select V-W-S and the laser will continue rotating whilst making these small adjustments, thus saving a great deal of time on site.

Tilt

Another feature is TILT.  When selected this operates much like tilt on a pinball table, any major movement or vibration and the laser will shut down, thus warning the user.  The user can then make sure everything is still true to the datum and let the laser re-start.

Horizontal and Vertical

RedBack Lasers DGL1010GM can also operate in vertical rotation mode for alignment and site layout applications and has scan line mode to intensify laser clarity for indoor fit-out.

Vertical Tracking

The  DGL1010GM can use its tracking receiver in vertical mode with the laser on its side.  This is handy for jobs such as fence alignment or site squaring layout when used in combination with the laser dot at 90 degrees to the rotating beam.

Included

The DGL1010GM comes with a Smart Remote with LCD display, the remote can control nearly all the facets of the laser level but is particularly handy for setting digital grades, for example, when you have the laser high in the air (using HDET 3m Tripod).  This laser comes with a special heavy-duty double LCD display receiver that not only sets automatic grade match but also has a large reception window and displays distance from level in 0.5 millimetres, Also included is a Li-ion rechargeable laser level battery and charger, Axis alignment scope, axis fine adjustment plate, side mount plate and a hard shell carry case.

The DGL1010GM laser is suitable for just about any general levelling tasks but is designed for serious grade or slope setting in earthmoving and civil construction.

So if you need a serious digital grade laser, with dual-axis, auto grade match, millimetre receiver and Li-ion power all as standard then the DGL1010GM by RedBack Lasers is the tool for you.

The RedBack DGL1010GM comes with a 5 Year manufacturer’s warranty.

• Electronic Self Levelling
• Horizontal Rotation for Levelling
• Vertical Rotation for Alignment and Site Layout
• Digital Dual Grade Setting
• Smart Remote Control
• V-W-S and TILT modes
• Scan Line modes for indoor fit out
• Internal cast metal Safety Cage
• Direct Drive Rotation
• INCLUDES Li-ion Rechargeable Battery & Charger also Std “D” cell Battery Operation
• RF Remote Grade Match Dual LCD Receiver with millimeter display and large reception window
• NEW – 0.5mm Tracking Receiver with Cast Metal Staff Clamp LR730T
• Side Mount Plate
• Axis Alignment Scope
• Axis adjustment plate
• 5 Year RedBack Warranty

All RedBack Laser Levels have been Checked and Calibrated in Australia and come with a FREE certificate of calibration.

Specifications

• Range – 700m diameter using Millimeter Receiver
• Accuracy – +/- 1mm at 20m
• Grade – Dual Axis +/- 10.000%
• Remote Range – 60m
• Laser Class – class 3 <5mW 635-670nm red
• Water Dust Resistance – IP66

Accessories featured in photos or video may be OPTIONAL, at an extra cost. Specifications may change without notice.

MR825WD RedBack Machine Receiver with Wireless

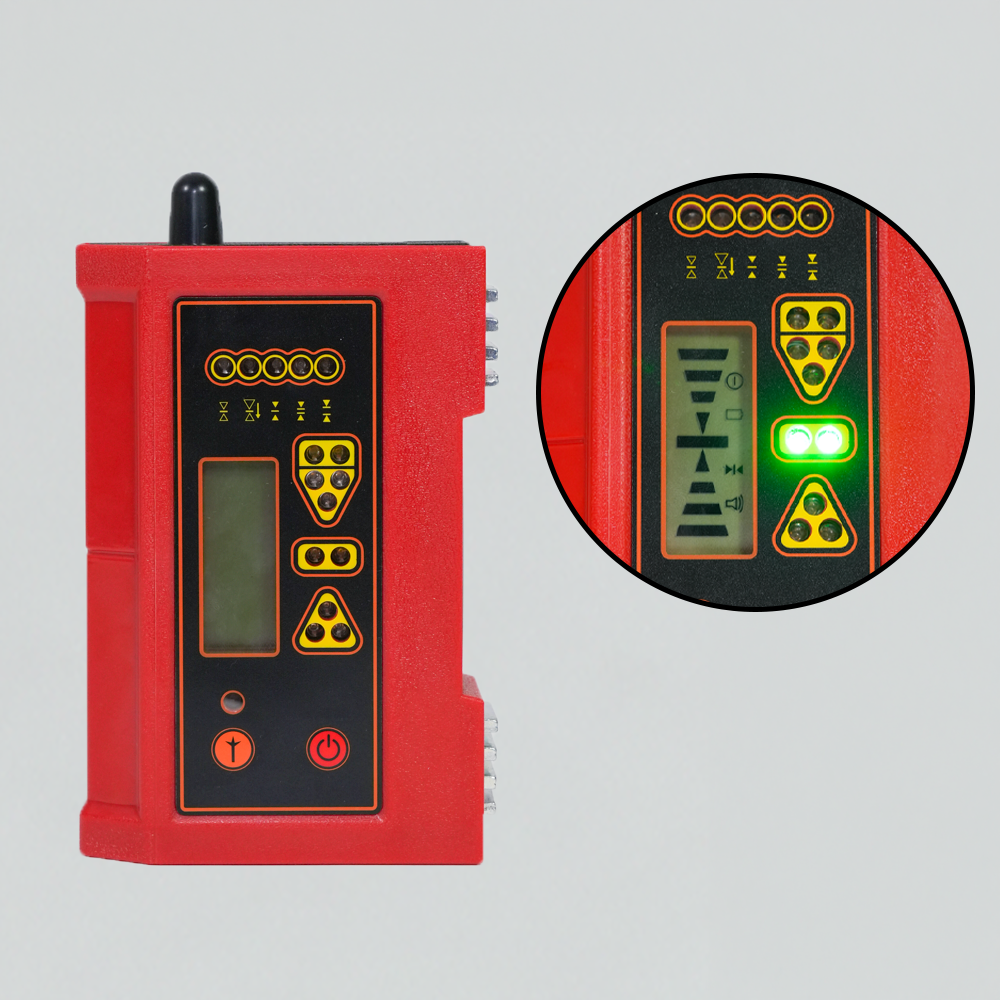

RedBack MR825WD machine receiver with wireless comes with both clamp mount and magnetic mounting options.  The MR825WD include a wireless in-cab repeater unit providing a convenient remote display directly in your cab without any cables.

This is a great receiver for Laser Planes, Box Blades, Grader Blades, Dozers, Backhoes and more.

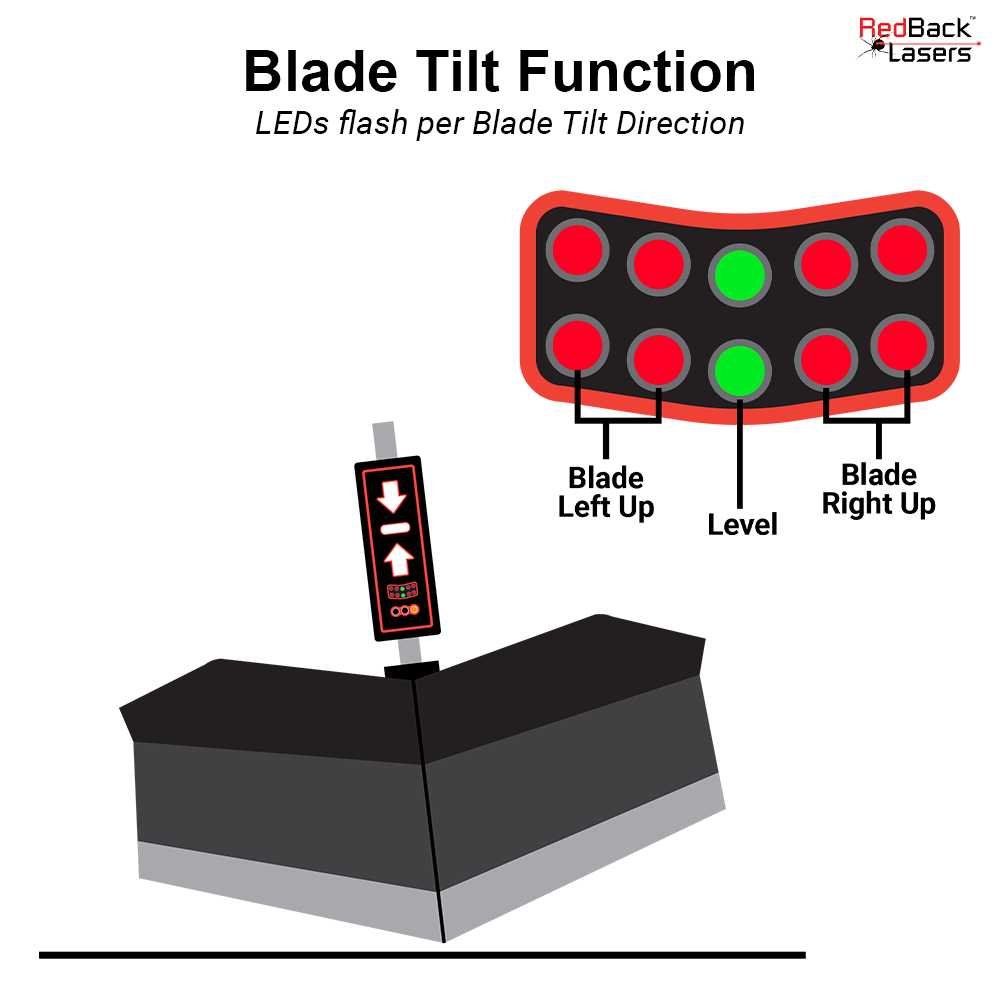

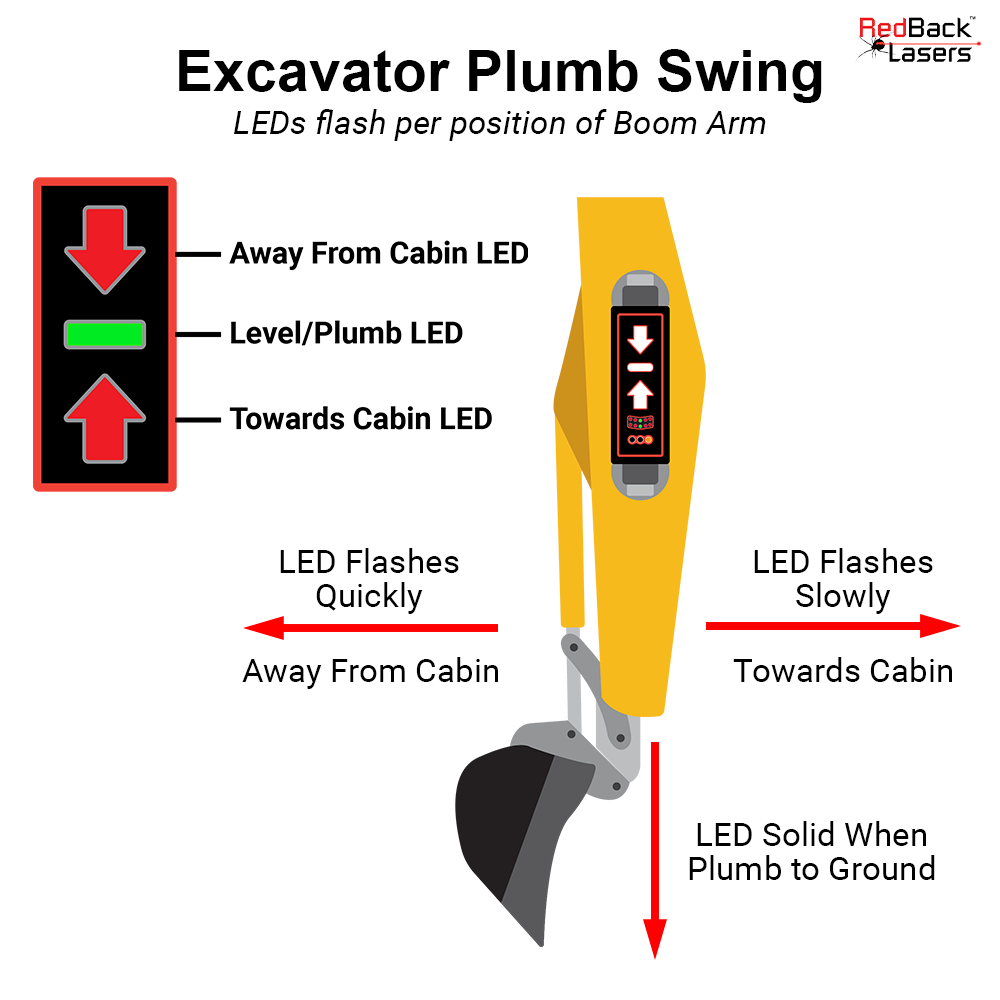

One specialist feature of this system is Blade Tilt indication, if mounted on a dozer or grader blade indicates when the blade is level or at an angle. Another specialist feature is Plumb Swing indication when mounted on a backhoe indicated when the receiver/ arm is vertically upright or tilting forward or back, ideal for getting correct depth in trenching.

The RedBack MR825WD requires a red class 3 Rotating laser level for optimum range and performance such as the RedBack DGL1010VS, DGL1010GM or DGL2510Q.  But can be operated at a reduced range with a class 2 red beam rotating laser such as the EGL624 etc.

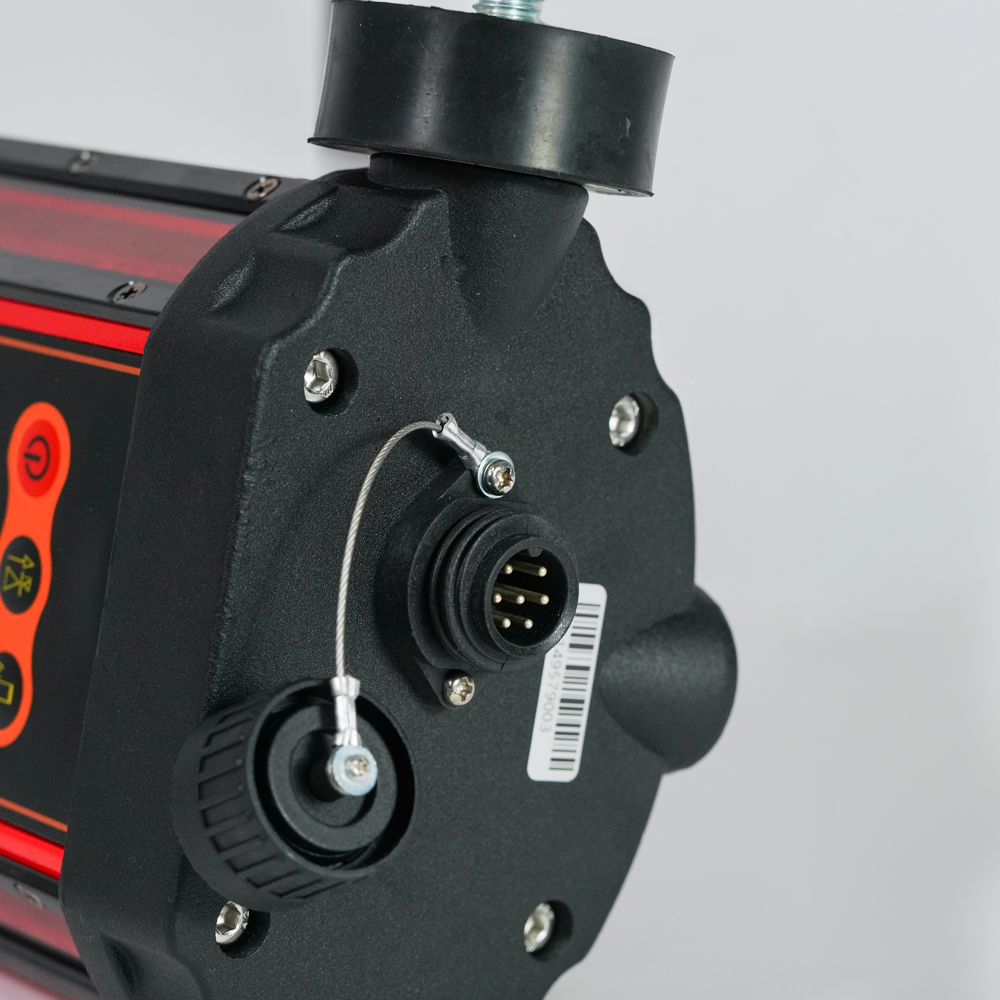

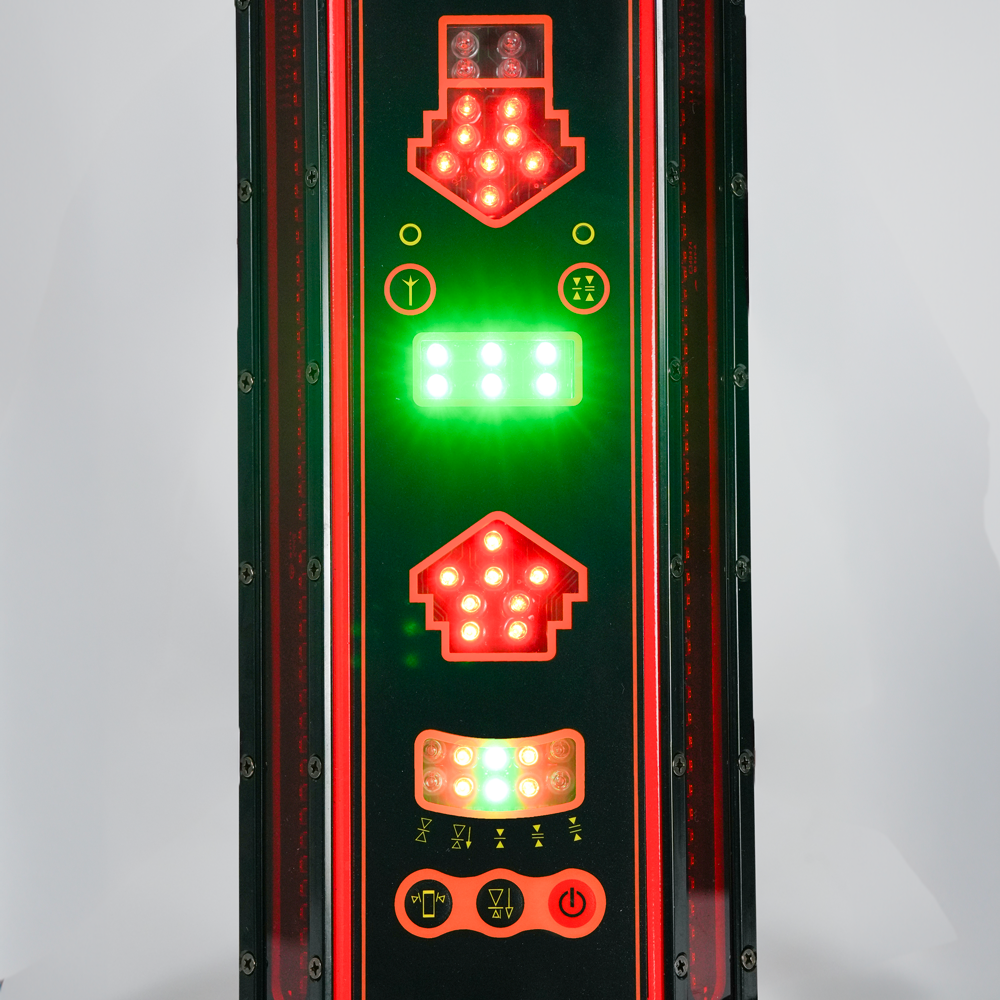

TheRedBack Lasers MR825WD wireless machine mounted receiver is specifically designed for earthmovers, excavating and large civil construction jobs.  Having all the information inside your cab saves huge time jumping in and out or having a second person on the ground checking your work.  The receiver is extremely well built and watertight and has dampening between the receiver and the mounting options.

Features

• 360 Degree Sensors for all-round reception
• Large 260mm Reception Window
• Two-Way RF Transmission between Receiver and In-Cab display unit
• Accuracy settings +/-5mm , 10mm and 20mm
• Blade Tilt Function
• Plumb Swing Function (Excavator Mode)
• Laser Received Height Flash
• Magnetic and Clamp Mounts (receiver)
• Windscreen, Magnetic and Clamp Mounts (In-Cab unit)
• IP66 water and dust-tight
• Internal Ni-Mh battery and Mains Charger (receiver), “AA” batteries for In-Cab.
• WRD In-Cab Repeater Unit and Cables
• Operates with Red Beam Rotating Lasers, Range 200m (class 3 lasers).
• Two Year Warranty

Optional Accessory

Also available is the FVAK64 Fence & Vertical Alignment Kit which makes this laser ideal for long-distance fence alignment tasks in commercial and rural situations. CALL 1800 769 858 for details.

Fence Alignment Kit FVAK64 designed for use with the RedBack DGL1010GM

---
